What to Think About Before You Buy a New or Replacement Grain Dryer

Whether you are putting in a dryer on a new site or finally replacing a unit that has been held together with baling wire and optimism, the questions are mostly the same. Replacement projects just carry more surprises, and they have a way of showing up after the old dryer is already cut out and the crane has gone home.

Work through this checklist before you decide anything.

Start With What the Dryer Actually Has to Do

Before you look at a single spec sheet, you need to start with voice of the customer. That means knowing what the dryer actually has to do for the people who depend on it, not what the brochure says, but what your harvest actually looks like and what your markets actually require.

A dryer has to satisfy two customers at the same time. The producer dropping off wet corn and the end user who needs it to grade out at the other end. A machine that cannot keep up with trucks during peak harvest loses bushels to the elevator down the road. A machine that keeps trucks moving but runs too hot and sends excess broken corn and foreign material out the dry leg trades one problem for another, and that second problem shows up at delivery when you can least afford it.

On the producer side: Can you receive and dry fast enough that trucks are not stacking up? Can you handle a wet year with 24 to 26 percent moisture corn without slowing down so much that you lose the goodwill you built during the good years?

On the end user side: What moisture does your buyer require? What are the BCFM and damage tolerances for your destination? If you are handling food grade corn, seed, or specialty crops, what temperature limits apply and how much do they cut your throughput?

Those two sets of requirements define what the dryer actually has to do. Everything else is about finding a machine that can do that job reliably, at your volume, within your site constraints, at a cost that makes sense over its working life.

Volume, Moisture Removal, and Grain Quality

Size for your worst three days, not your average days. Capacity ratings are stated at favorable conditions with moderate moisture removal and comfortable ambient temperature. Your real world number is at 20 to 22 percent corn on a humid afternoon in the middle of a harvest push.

The physics of drying come down to temperature, airflow, and how long the grain spends in the column. Push any one of them too hard and the outside of the kernel dries faster than the inside can equalize. That is where stress cracks, elevated BCFM, and heat damage come from. Modern corn varieties have made this harder. The softer, floury endosperm in today’s hybrids cracks sooner at a given temperature than older genetics ever did. If your BCFM numbers have gotten worse and nothing obvious changed in how you run the dryer, the grain itself may be part of the reason.

Plan for at least four scenarios: a normal year, a peak arrival day after weather delays, a wet year where you are pulling six to eight points, and a quality sensitive market where you have to pull back on temperature. Size for the second and third of those. The first one takes care of itself.

What Your Existing Facility Can and Cannot Do

This section is for replacement projects. Greenfield sites can skip to Dryer Location, though the handling system points here still apply.

This is where replacement projects get expensive fast, almost always because somebody assumed the existing infrastructure would work without actually checking.

Wet side. Make sure the wet leg and conveyance is sized to feed the new dryer at full capacity. A practical target for wet holding is 16 to 36 hours of dryer runtime at the new machine’s realistic capacity. Less than 12 hours and you will be cycling the dryer around truck traffic during peak harvest. More than 48 hours and you are accumulating quality risk in the bin. Wet corn at harvest temperatures does not hold indefinitely, and the wetter the inbound grain, the faster that clock runs.

Dry side. The dry leg and outbound conveyance have to match dryer discharge capacity and route grain to multiple bins without backing up. If the dry side creates a bottleneck after every cycle, the effective capacity of your new dryer is whatever that bottleneck allows.

Removing the old dryer. This is the part of the project that blows budgets more than any other item. Can a crane reach the existing dryer without taking out spouting or the truck scale? Are the wet and dry leg connections reusable? Can the changeover happen in a clean window, or will you need a backup plan during harvest? What does it take to clean out grain, fines, and dust before steel can safely be cut? That cleanup step is not optional. Grain facilities have had fires start during demolition work.

Foundations. Get qualified answers to four questions before the project is designed: Does the footprint and bolt pattern match? Is the foundation engineered for the new machine’s weight and wind load? Has the pad cracked, settled, or deteriorated? Do the pad elevations still work with the new machine’s wet leg discharge height and dry grain takeaway? There are three honest answers an engineer can give you: fine as is, can be modified, or needs to come out. All three are cheaper to know on paper than in the field.

Electrical. Modern dryers typically draw more power than the units they replace. Check transformer capacity, wire sizing between the transformer and your main panel, and feeder sizing. Check grounding and lightning protection. A vendor quote that only lists the dryer’s electrical draw is not the full picture. Ask what the complete installation pulls from the panel including fans, controls, variable frequency drives, and any conveying equipment tied to the new dryer.

Fuel supply. Verify that existing piping is sized for the new burner’s full BTU load, not average load. Check that regulators and safety devices are compatible with the new burner. If you are on LP, confirm the vaporizer is sized for peak draw. If your current dryer has always been finicky on cold mornings or windy days, the gas system is already marginal. Do not carry that problem into the new installation.

Dryer Location

Where you put the dryer affects how well it runs, what it costs to operate, and what the installation costs in the first place.

Air intake. Most manufacturers specify 10 to 20 feet of unobstructed clearance around the intake sides. Buildings or bin walls that block intake air reduce efficiency and can allow exhaust air to recirculate back into the intake. Warm, humid exhaust air feeding the burner fans instead of fresh ambient air kills capacity and fuel efficiency. If you are running two dryers on the same site, intake air competition is a real design consideration. Orientation, spacing, and prevailing wind direction all matter more with two dryers than with one.

Drainage. Avoid placing the dryer in a low area that floods during rain. A concrete apron around the machine is not optional. It is where equipment access, in season cleaning, and emergency response all happen.

Utility runs. On a new site, price out the utility runs as part of site selection. A location that looks good on a plot plan can turn into a significant cost if it puts the dryer 600 feet from the nearest gas main or requires a new transformer. On a replacement project, understand whether the existing service point is adequate or whether the new machine requires an upgrade.

Future expansion. On a greenfield site, think about where a second dryer would go before you commit to the first dryer’s location. The decisions you make in phase one set the constraints for everything that follows.

Dryer Design

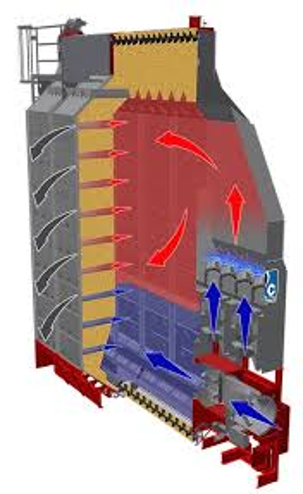

Most commercial elevators run crossflow dryers and for good reason. They are proven, parts are available, service networks are established, and the operators who run them know them. If you are replacing a crossflow with another crossflow, you are not making a step backward.

That said, it is worth understanding what you are buying at high moisture removal. Crossflow designs move air through the grain column in one direction, which means the grain on the air entry side dries faster than the grain on the exhaust side. Most well maintained crossflow dryers manage this fine at five or six points of removal. Push to seven or eight points on a wet year and that temperature gradient across the column becomes more of a factor for stress cracks and BCFM. Ask the salesperson specifically what happens to BCFM at seven points of removal compared to five. If they do not have a real answer, that tells you something about how well they know their machine.

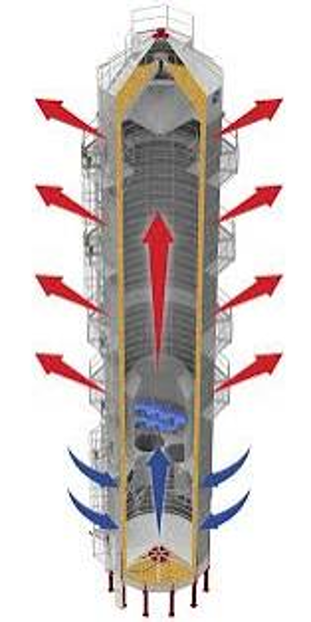

Mixed flow designs reduce that gradient by alternating air direction through the column, which tends to produce more uniform drying at higher moisture pulls. They are worth evaluating if you are regularly seeing wet years or running quality sensitive markets, but they are not a requirement for every operation.

Images sourced from the Mathews Company

The cooling section matters as much as the heating section. Ideally grain leaving the dryer is within 5 to 10 degrees Fahrenheit of ambient before it goes to storage. Getting to that range is not always practical in the middle of a harvest push, but you want to be no more than 20 degrees above ambient. Sending hot grain to storage creates moisture migration problems that the drying step already did the work to prevent.

Controls are part of dryer design, not an afterthought. A system that continuously monitors inlet moisture, outlet moisture, plenum temperature, grain temperature, and discharge rate and adjusts automatically in small steps will protect grain quality across shifts and across the full range of operator experience. Make sure the controls platform works with your existing SCADA system or grain management software so the dryer participates in your facility's broader monitoring rather than running as an island. Data logging matters too. When something goes wrong you need to see exactly what changed and when

Fuel and Energy Efficiency

Most operators know their gas bill. Fewer know their cost per point of moisture removed per bushel. That number is what actually tells you whether a more efficient dryer pencils out over its operating life. Going from a four or five point pull to a wet year seven or eight point pull does not just add a little fuel cost. It adds a lot, and it raises the risk of pushing grain too hard in the process.

When comparing dryers, ask for fuel use per point per bushel and electricity use per point per bushel at your typical moisture removal level, not at the manufacturer’s reference conditions. Air recirculation and heat recovery features can make a meaningful difference at high annual volumes, but those claims need to be backed by field verified numbers from comparable operations, not just the spec sheet.

It is also worth asking whether a single large dryer is the right answer for your operation. Some field data suggests dryers in the 4,500 to 5,000 bushel per hour range are the most fuel efficient per point of moisture removed per bushel. The thermodynamics of column depth, airflow distribution, and burner efficiency tend to favor mid size machines. Two of them running at full capacity during peak harvest, with one shut down when traffic slows, can deliver better fuel economy across the full season than a single large dryer running at varying loads.

The redundancy argument is equally strong. A failure on one machine leaves you at roughly half capacity rather than a full stop. The difference between half capacity and zero capacity during harvest week is the difference between keeping farmers in line and losing them to the elevator down the road.

That said, two dryers require more infrastructure than one. Feeding two machines means either a split wet leg with a diverter or two separate wet legs. The dry side has to handle two dryers discharging at the same time without backing up. Wet bin capacity has to buffer two machines at full draw during peak arrival. All of that has a cost, and it belongs in the economic comparison before you decide two smaller dryers beat one large one for your site.

Two dryers also open up operational flexibility a single large machine cannot offer. With two wet bins you can match each dryer’s temperature and throughput settings to the grain it is actually seeing rather than averaging across a mixed wet hold. You can also run two different end uses at the same time. One dryer at standard feed corn settings, the other dialed back for food grade, seed corn, or an identity preserved contract. A single dryer cannot serve two markets at once without interrupting one to run the other. That flexibility has real commercial value when your basis on a specialty contract is better than your flat price corn.

Safety

Safety is not the last thing to think about when choosing a dryer. It is a filter you apply before you commit to any option.

Grain dryers are one of the leading causes of grain facility fires. Fines and chaff on hot surfaces ignite. A dryer that is hard to clean accumulates the conditions for a fire while burning more fuel than it should. Before you buy, ask directly how long in season cleaning takes, where fines collect in the column and plenum, and what access looks like. A dryer that requires half a day to clean properly will not get cleaned properly during harvest.

Talk to your insurance carrier before you finalize the specification. Insurers increasingly have specific requirements for grain dryers covering spark detection at inlet and outlet points, belt and bucket materials, suppression system access, and continuous bearing and temperature monitoring. That conversation may also lead you to a deluge system, which is a fixed water delivery system that can flood the dryer column and plenum in a fire event. A deluge system is not required at every site, but it is significantly cheaper to rough in the water supply line, header, and drain provisions during construction than to add them after the dryer is set. Some insurers and local fire marshals are beginning to expect them on larger installations, and having the infrastructure already in place gives you options if that conversation comes up later.

Payback and Cost Justification

Do not build the payback model around drying income alone. At a commercial elevator, the dryer is not primarily a profit center. It is what keeps grain moving through the facility. Storage revenue, handling revenue, shrink revenue, and merchandising margin on owned grain all run through the dryer’s ability to keep the facility operating. The capital cost of a well specified system is usually a smaller share of the margin it enables than it looks like on the equipment price line.

Build the full cost number before you compare options:

• Total installed cost: dryer, foundation, electrical upgrade, gas supply upgrade, wet bin additions, legs, drags, spouting, dust collection, and removal of the old dryer if applicable

•  Annual fixed cost through amortization at your cost of capital

•  Repair and maintenance, a reasonable benchmark is around three percent of total installed investment per year

•   Fuel, electricity, and labor at realistic harvest utilization

•   Incremental storage, handling, and merchandising contribution tied to grain volume the new capacity retains or attracts

•    Revenue at risk from the current situation: what does it actually cost you when the dryer goes down during harvest and bushels go down the road?

That last line is the one most operators underestimate in repair versus replace decisions. Downtime during harvest is not just a repair bill. It is a grain flow problem. Farmers who found another home for their corn may not come back next year.

The Bottom Line

The dryer is the throttle on everything else in the facility. When it is running right, the whole operation flows. When it is not, nothing else matters much.

Start with what your two customers actually need. The producer needs speed, reliability, and a facility that is running when the weather says go. The end user needs grain that meets spec. Every question in this checklist exists to close the gap between what those two customers need and what your dryer can actually deliver.

Three numbers belong in every dryer evaluation. First, cost per point of moisture removed per bushel across the range your operation actually sees, not just the manufacturer’s reference conditions. Second, total operating cost over the life of the machine. Purchase price is the smallest part of that number. Energy consumption compounds across twenty years of harvest seasons, and maintenance runs at roughly three percent of installed investment every year. Third, the revenue the dryer enables or protects. The facility that is running during a tight weather window keeps its farmers. The facility that can handle a wet year without slowing down builds the kind of loyalty that outlasts a bad basis conversation.

Selecting a new dryer deserves the same hard look you would give any other major capital decision on the property, maybe even more.

This post was the last in the series on grain drying. If you missed the other three, - A Practical Introduction to Grain Drying, The hidden Cost of Drying Corn, and Know Your Real Drying Cost, I strongly suggest you take the time to review them.

Thank you for reading and for being part of this conversation. Whether you’re an elevator operator, a processor, or simply someone who cares about how grain moves from field to market, reviewing the fundamentals is always time well spent. Your feedback shapes this blog, so feel free to share your thoughts or experiences.
