Top Causes of Corrugated Steel Grain Bin Failure

A Practical Reference for Grain Elevator Operators

GG50 | 2025

What This Document Is For

Bins fail for a reason. It is almost never a mystery, and it is almost never the weather.

The grain handling industry has no shortage of opinions on bin design, failure analysis, and structural engineering. Most of that conversation happens between engineers. This piece is written from a different angle, the operator’s view. It comes from more than fifty years around grain handling systems, including three decades with one of the largest corrugated steel storage users in the world. Over that stretch, true structural failures on bins that were designed right, built right, and run right were rare events. That is the point.

Most corrugated steel grain bin failures trace back to something a person decided or did not do at the time of purchase, during installation, in day-to-day operation, or over years of deferred maintenance.

This reference covers the full range of failure causes organized into six categories, ranked by how often and how badly each one shows up in the real world. It is written for the people who actually run elevators, not engineers. The goal is to give operators and managers a clear picture of where bins get into trouble and what to watch for.

Scope: This document covers corrugated galvanized steel grain bins, typically 30 to 105 feet in diameter, on concrete foundations, used in commercial grain handling. Failure means any structural problem that compromises the integrity or safe use of the bin, including wall buckling, roof failure, foundation distress, or collapse.

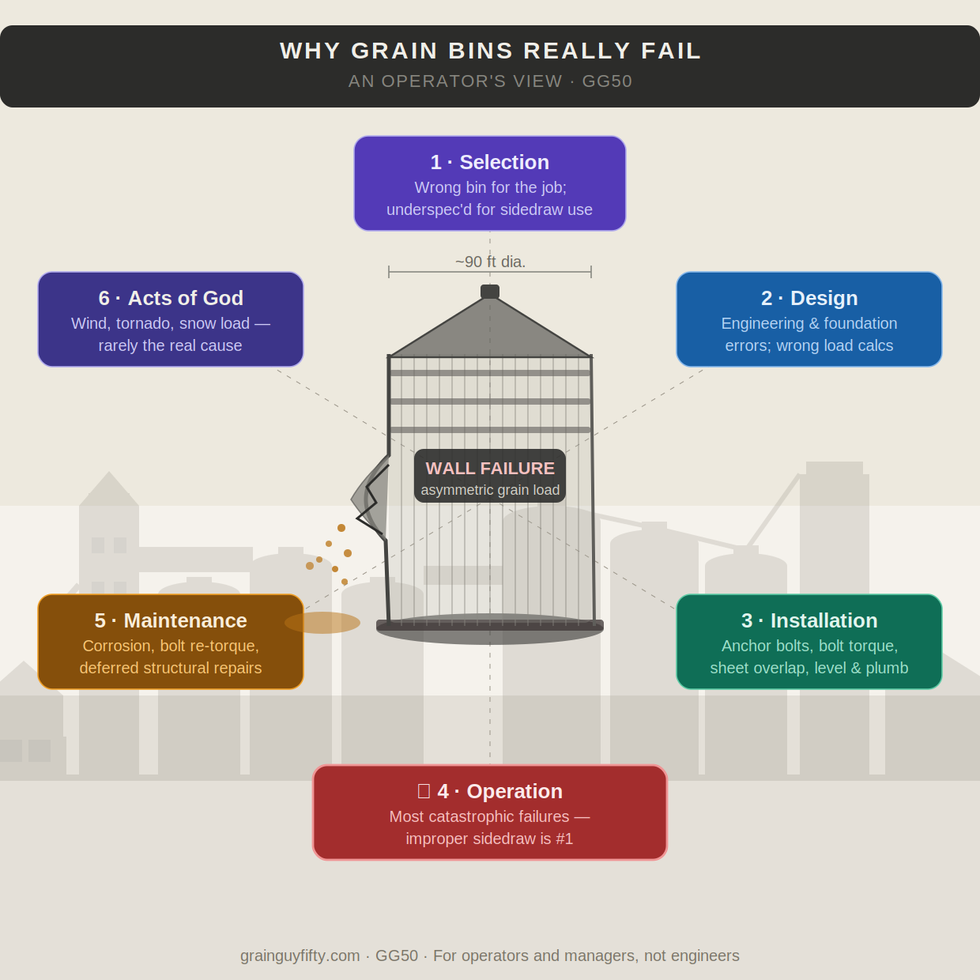

The Six Ways Bins Fail

Every cause of corrugated steel bin failure fits into one of these six categories. They are listed here in plain language. The ranked order comes later.

1. Selection  —  Buying the Wrong Bin for the Job

This is where a lot of problems start, even if the bin stands for years before anything goes visibly wrong. Selection failures happen when the bin that gets purchased does not match the actual job it is being asked to do.

•  Choosing a bin that is marginal for your actual capacity needs or grain type

•  Picking the wrong anchor bolt type or coating for your soil and climate conditions

•  Underspecifying for wind loading at the site

•  Assuming grain density at 45 lb. per cubic foot when your wet harvest corn is running 50 to 54 lb. per cubic foot or higher

•  Not accounting for the roof loads that come with conveyors, catwalks, or distributors

•  Buying a bin without enough wind rings or wall reinforcement when you plan to use sidedraw

•        Insufficient roof vent capacity for the aeration and reclaim rates you actually run

A note on density: A common design assumption of 45 lb. per cubic foot is fine for dry stored grain but it is not conservative for wet corn at harvest. Depending on moisture, harvest corn can run 48 to 54 lb. per cubic foot or more. If you are filling bins with wet grain and the structure was not sized for that weight, you are already working against the design.

2. Design  —  Engineering and Foundation Errors

Design failures often do not show up right away. The bin gets built, it fills up fine the first few times, and then something gives way under conditions the structure was never actually built to handle.

•  No soil borings done before foundation design, or inadequate borings for the bin size and soil type

•  Underbuilt foundations, which is especially common with the minimum-spec pads that some OEMs include in their standard quotes

•  Foundation design that does not account for local frost depth, drainage, or soil bearing capacity

•  Not enough wind rings for the bin diameter and height

•  Stiffeners that are undersized, improperly spaced, or detailed incorrectly

•  Sidedraw loads not included in the wall and stiffener calculations

•  Roof structure not designed to carry the actual loads from conveyors, catwalks, or distributors

•  Designing for the wrong grain density, as noted above

•  Access doors sized only for people, not for the actual loads and entry equipment that show up

•  Failing to design for the negative pressure that aeration systems create inside the bin

•  No provision for roof snow load or drifting snow patterns at the site

•  Temperature cable attachment points not accounted for in the wall design

•  Eccentric fill patterns from a distributor that does not cover the full floor, creating off-center loading that the wall was not designed for

•  Bin floor design failures, including cracked or heaved concrete that disrupts the aeration plenum or allows moisture to work under the bin

3. Installation  —  How the Bin Was Put Together

A bin can be well-designed and still fail because of how it was built. Installation errors are the second most common cause of catastrophic failure in the field, and a lot of them are invisible until a load comes along that exposes the weak point.

•  Poor foundation work, including bad compaction, low-quality concrete, wrong elevation, or inadequate curing time

•  Anchor bolts placed too close to the edge of the foundation slab, which is one of the most common and most destructive installation errors

•  Anchor bolts mislocated, misaligned, or set at the wrong projection height

•  Improper jacking during erection, including uneven lifts or not enough cribbing to support the load

•  Wrong bolt torque, either too loose which allows slipping and leaking, or too tight which cracks sheets and damages holes

•  Stiffeners misaligned during assembly, which creates stress concentrations that fail under normal grain loads

•  Sheet overlap done wrong, including wrong pattern, missing sealant, or misaligned bolt holes

•  Roof components, vents, or manways installed without proper seals or fasteners

•  Failure to install the wind rings or external platforms that were part of the original design

•  Aeration fans or transitions installed in a way that creates pressure imbalance

•  Missing sealant at sheet overlaps and the base ring, which lets moisture in and starts corrosion early

•  Bin not verified for level and plumb during ring erection, which compounds into structural problems as the grain load increases

•  Using the bin itself as a structural anchor point, including any of the following:

◦  Attaching towers or legs directly to the bin wall

◦  Running conveyors or catwalks off the bin sheets instead of a separate support

◦  Anchoring guy wires to the bin

◦  Tying other buildings or equipment foundations to the bin foundation

4. Operation  —  What Happens Every Day

OPERATION FAILURES CAUSE MORE CATASTROPHIC COLLAPSES THAN ANY OTHER CATEGORY.

 The bin was designed right, built right, and it still gets destroyed because of how it was used. Most of these failures are preventable with good procedures and trained people.

•  Not pulling from the center sump first when starting to empty a bin

•  Using sidedraw before the grain level is off the wall, which creates massive one-sided pressure

•  Running sidedraw repeatedly at high fill levels without recentering the grain

•  Not following the OEM fill and unload sequence, which is designed around the structural limits of the bin

•  Grain bridging and then suddenly collapsing, which hits the wall like a battering ram

•  Running a sweep auger against a compacted or bridged grain mass

•  Repeated partial fills without ever drawing the bin fully down, which builds compacted zones and asymmetric pressure over time

•  Roof overloading from conveyors, catwalks, trusses, or distributors that were added after the original design

•  Pulling grain with the roof vents blocked or inadequate, which creates vacuum conditions inside the bin

•  Running aeration with frozen, plugged, or blocked roof exhausters

•  Storing grain above the moisture or density the bin was designed for

•  Filling too fast, which creates impact pressure on the lower ring sheets

•  Unloading too fast, which causes the bin to quake and generates flow-induced shock loads

•  Letting out-of-condition grain fires or hot spots run without responding

•  Mishandling fumigated bins, specifically allowing moisture ingress that causes phosphine degradation and corrosion

•  Overfilling bins onto roof support structures

5. Maintenance  —  What Gets Skipped Over Time

Maintenance failures are usually slow. The bin does not collapse on the day someone forgets to re-torque bolts. It weakens over months and years until a normal load becomes a failure load. By the time something gives, the underlying problem has been building for a long time.

•  Not doing regular structural inspections

•  Finding problems with anchors, bolts, stiffeners, or sheets and not fixing them

•  Letting corrosion develop at stiffener bases, anchor bolts, and the lower sheets where loads are highest

•  Roof leaks that go unfixed, leading to wet grain pockets and wall corrosion from the inside

•  Never re-torquing bolts after the first fill cycle, which OEMs typically recommend and almost nobody actually does

•  Not addressing early obrounding or visible deformation before it progresses into something that cannot be repaired

•  Fatigue damage from repeated fill and empty cycles on components that are already weakened or corroded

•  Temperature cable hardware attached incorrectly or left to damage the sheet wall over time

•  Ignoring roof vent condition, which sets up pressure failures

•  Allowing rust to build up under stiffener baseplates

•  Water ponding around the foundation perimeter, which drives frost heave and undermines concrete over time

•  Aeration systems that are neglected, with plugged ducts, failed fans, or unbalanced airflow

•  Roof structure and support members under conveyor and catwalk loads that go unchecked

6. Acts of God  —  Weather and External Forces

Weather gets the headlines when bins go down, but it is not the leading cause. That said, external forces are real and they can be catastrophic when they hit a bin that was already weakened or underbuilt for the site.

•  Wind buckling on empty or partially full bins, which have almost no internal pressure to resist the force

•  Tornado, hurricane,  or straight-line derecho wind events

•  Snow loads that exceed the design, especially with drifting or unbalanced accumulation on one side of the roof

•  Ice buildup on roof vents that blocks exhaust during aeration and creates pressure collapse

•  Lightning strikes causing fires

•  Flooding that undermines or softens the foundation

•  Ground vibration from nearby construction, blasting, or heavy equipment that contributes to foundation distress

•  Seismic activity

Most bins that fail in a storm were already compromised. Empty bins are particularly vulnerable to wind because there is no grain mass to add resistance. Proper wind rings and anchorage are the main design controls for this category.

Which Category Causes the Most Failures

These six categories are not equal. Some dominate the field failure landscape. Some are rare but catastrophic when they happen. Here is how they rank, from the category that causes the most real-world failures down to the one that causes the fewest.

This ranking reflects how often failures happen in each category, how severe those failures tend to be, and how much of a role each plays when investigators dig into what actually went wrong.

Rank	Category	What It Means in the Field
1	Operation	Most catastrophic collapses start here. How the bin was used day-to-day.
2	Installation	A close second. Many bins are structurally compromised before the first bushel goes in.
3	Design	Less common than the first two, but when design fails, it fails big.
4	Maintenance	Slow degraders that set the stage. Bins weaken quietly over years.
5	Selection	The wrong bin for the job. Often shows up later as a design or operation problem.
6	Acts of God	Gets the press, but not the highest count. Low frequency, high severity.

The practical takeaway from this ranking is that if you want to reduce bin failures at your facility, you start with operating procedures and installation quality. Those two categories account for more failures than the other four combined.

The Ten Individual Causes That Destroy the Most Bins

If you had to pick the single most important list to post in your office or go over with your team, this is it. These ten items are the highest-impact individual failure modes when you factor in both how often they happen and how much damage they cause.

#	Cause	Category	Why It Matters
1	Sidedraw misuse	Operation	Pulling sidedraw before grain is off the wall creates massive one-sided pressure. This is the single most common cause of catastrophic wall buckling.
2	Anchor bolt installation errors	Installation	Bolts too close to the edge of the slab, misaligned, or wrong embedment depth. The bin walks, cracks the foundation, and eventually tears itself apart.
3	Ignoring OEM fill and unload sequence	Operation	Bins are designed around a specific filling and emptying order. Skipping it overloads sheets and stiffeners in ways the structure was never meant to handle.
4	Misaligned stiffeners and bad sheet overlap	Installation	Poor vertical load paths and stress concentrations from erection errors. A bin can fail at loads well within design when the structure is not straight.
5	Underbuilt or poorly constructed foundations	Design / Installation	Weak soil, no borings, thin pads, poor compaction. Leads to settlement, obrounding, and structural distortion that progresses into failure.
6	Using the bin as a structural anchor point	Installation	Towers, catwalks, or guy wires attached to the bin wall or foundation introduce loads the structure was never designed to carry.
7	Grain bridging and sudden collapse	Operation	Out-of-condition grain forms a bridge. When it breaks, the falling mass hits the wall with enormous force.
8	Wrong bolt torque at installation	Installation	Too loose causes slipping, leaks, and fatigue. Too tight cracks sheets and damages holes. Both paths lead to premature failure.
9	Roof overload from conveyors and catwalks	Operation / Selection	Roof structures overloaded by equipment beyond what they were designed for. Roof collapse can pull the upper wall down with it.
10	Corrosion at base sheets, stiffeners, and anchors	Maintenance	The slow killer. Section loss at the base where loads are highest, until a normal fill becomes a failure load.

Early Warning Signs Every Operator Should Know

Most bin failures do not come out of nowhere. The structure tells you something is wrong before it goes. Here is what to watch for during your regular walkarounds.

On the Wall and Stiffeners

•  Any visible bowing or waviness in the wall sheets that was not there before

•  Stiffeners that are no longer plumb or have pulled away from the sheet at the base

•  Rust staining running down the outside of the wall, especially at stiffener bases and the bottom ring

•  Bolts that are loose, missing, or showing heavy corrosion

At the Foundation

•  Concrete that is cracked, spalled, or showing movement around the anchor bolts

•  Any gap or separation between the base ring and the foundation

•  Water pooling against the foundation after rain, which means drainage needs attention before freeze-thaw cycles do more damage

•  Visible settlement or tilt when you walk the perimeter and sight down the wall

On the Roof

•  Roof vents that are damaged, plugged, or stuck closed

•  Any visible deflection or sag in the roof structure

•  Leaks showing up as wet grain or staining on the inside wall

•  Catwalk or conveyor supports that are showing movement or have shifted at their attachment points

During Operation

•  Unusual sounds during filling or unloading, including popping, cracking, or metallic groaning

•  Grain that is not flowing evenly from the sump, which can indicate a bridge forming

•  Pressure that seems unusually high or low during aeration, which can indicate blocked vents or ducts

•  A bin that takes noticeably longer to empty than it used to, which may indicate grain is compacting or channeling abnormally

When in doubt, do not fill it. A bin showing any structural warning signs should be inspected before the next load goes in. The cost of an inspection is a fraction of what a failure costs, and that math does not include anyone getting hurt.

The Short Version

If you match the right bin to the right job, install it correctly, and run it by the book, catastrophic failures should be rare over a long career in this business. The ten causes on the list above are not mysteries. They are not acts of nature. They are decisions, most of them made before the first bushel ever goes in.

Walk your bins. Follow the sequence. Fix the small things before they become big ones. The early warning signs in this document are not there to create paperwork. They are there because a bin almost always tells you something is wrong before it goes down. Listen to it.

A structural failure costs you the bin, the grain, the time, the insurance fight, and potentially someone’s life. The inspection that prevents it costs you an afternoon. That math is not complicated.

This post is the first in a series on corrugated grain bins. There will be three to four more in the near future.

Thank you for reading and for being part of this conversation. Whether you’re an elevator operator, a processor, or simply someone who cares about how grain moves from field to market, reviewing the fundamentals is always time well spent. Your feedback shapes this blog, so feel free to share your thoughts or experiences.

Regards,

Grain Guy Fifty
